Fetch Adapter
The Fetch Adapter applies element-wise transformations (type casting, masking, table lookup, zero-point subtraction) to the packet stream emitted by the Fetch Engine, before the Switch Engine routes it across slices.
The Fetch Engine itself does not run any of these transforms; they live here under Computing Tensors and are applied as separate stages between the Fetch Engine and the Switch Engine.
The kernel writer composes the per-stage methods directly on a FetchTensor, and each call advances to the next stage.
The adapter has four stages, each optional and invoked by calling its method on the stream in hardware pipeline order.
A FetchTensor may flow directly into the Switch Engine or the Collect Engine with no adapter call at all.
- Masking zeros the padded slots of the sequencer’s right pad.
- Table Lookup replaces values via a hardware lookup table.
- Type Casting converts the element type.
- Zero-Point Subtraction subtracts a quantization zero point, widening an integer stream to the Contraction Engine’s staging type (
i4toi5,i8toi9).
The main-context adapter supports all four stages, while the sub-context adapter supports only fetch_cast.
The example below pads 63 elements to 64, masks the 64th slot to zero, then casts i8 → i32.
The two stages are chained as two method calls on the FetchTensor produced by fetch(), in the mask → cast order matching the hardware pipeline.
#![feature(adt_const_params)]
extern crate furiosa_opt_std;
use furiosa_opt_std::prelude::*;
axes![A = 63];
fn fetch_mask_then_cast<'l, const T: Tu>(
input: BeginTensor<'l, T, i8, m![1], m![1], m![1], m![1], m![A]>,
) -> FetchCastTensor<'l, T, i32, m![1], m![1], m![1], m![1], m![A # 64]> {
input
.fetch::<m![1], m![A # 64]>()
// Time = m![1]
// Packet = m![A # 64]
// OutTime = m![1]
// OutPacket = m![A # 64] (#{0} cannot yet ride the type, see UC below)
.fetch_mask::<m![1], m![A # 64]>()
.fetch_cast::<i32>()
}
let mut ctx = Context::acquire();
let x: BeginTensor<'_, _, i8, m![1], m![1], m![1], m![1], m![A]> = BeginTensor::new(&mut ctx.main, Tensor::zero());
let _o = fetch_mask_then_cast(x);
Masking
The Tensor Unit’s internal data paths operate on fixed-width units (32-byte flits of 8 elements at 32 bits each), so axes whose sizes do not align must be padded (for example, 63 rounds up to 64).
The padded slots in m![A # 64] hold arbitrary values, which corrupts downstream computations.
Masking overwrites those slots with zero, tightening the mapping from A # 64 to A #{0} 64.
impl<'l, const T: Tu, P: CanApplyFetchMask, D: Scalar, Chip: M, Cluster: M, Slice: M, Time: M, Packet: M, B: Backend>
TuTensor<'l, T, P, D, Chip, Cluster, Slice, Time, Packet, B>
{
/// Runs the Fetch Adapter's masking stage.
///
/// Zeroes the padded slots described by the book chapter. `OutTime`
/// and `OutPacket` carry the pad-kind change at the type level (e.g.
/// `m![D # n]` → `m![D #{0} n]`). Callers spell them out explicitly
/// because downstream methods do not constrain their input shape. This
/// method takes no runtime argument (see [`FetchMaskConfig`]).
#[primitive(TuTensor::fetch_mask)]
pub fn fetch_mask<OutTime: M, OutPacket: M>(
self,
) -> FetchMaskTensor<'l, T, D, Chip, Cluster, Slice, OutTime, OutPacket, B> {
verify_fetch_mask::<Time, Packet, OutTime, OutPacket>();
FetchMaskTensor::new(self.ctx, self.inner.transpose(true))
}
}
The padded # m annotations on the input become #{0} m on the output.
fetch_mask takes no runtime argument. The compiler derives the mask config (FetchMaskConfig, holding last_axis, valid_count_dim, and rightmost_valid_count) from the difference between the input and output mappings.
The three cases below walk through the configuration the compiler will eventually emit for each mapping shape, using the same B-axis pattern under three different sequencer layouts.
Contiguous right mask
This case shows the basic shape: one contiguous right pad sits along the innermost axis, and the DM tensor’s B # 96 carries 4 trailing slots of arbitrary values.
#![feature(adt_const_params)]
extern crate furiosa_opt_std;
use furiosa_opt_std::prelude::*;
axes![A = 32, B = 92];
fn fetch_mask_contiguous_right<'l, const T: Tu>(
input: BeginTensor<'l, T, i8, m![1], m![1], m![1], m![1], m![A, B # 96]>,
) -> FetchMaskTensor<'l, T, i8, m![1], m![1], m![1], m![A, B #{0} 96 / 32], m![B #{0} 96 % 32]> {
input
.fetch::<m![A, B # 96 / 32], m![B # 96 % 32]>()
// Time = m![A, B # 96 / 32]
// Packet = m![B # 96 % 32]
// OutTime = m![A, B #{0} 96 / 32] (chunk axis tightens to #{0})
// OutPacket = m![B #{0} 96 % 32] (packet axis inherits #{0})
.fetch_mask::<m![A, B #{0} 96 / 32], m![B #{0} 96 % 32]>()
}
let mut ctx = Context::acquire();
let x: BeginTensor<'_, _, i8, m![1], m![1], m![1], m![1], m![A, B # 96]> = BeginTensor::new(&mut ctx.main, Tensor::zero());
let _o = fetch_mask_contiguous_right(x);

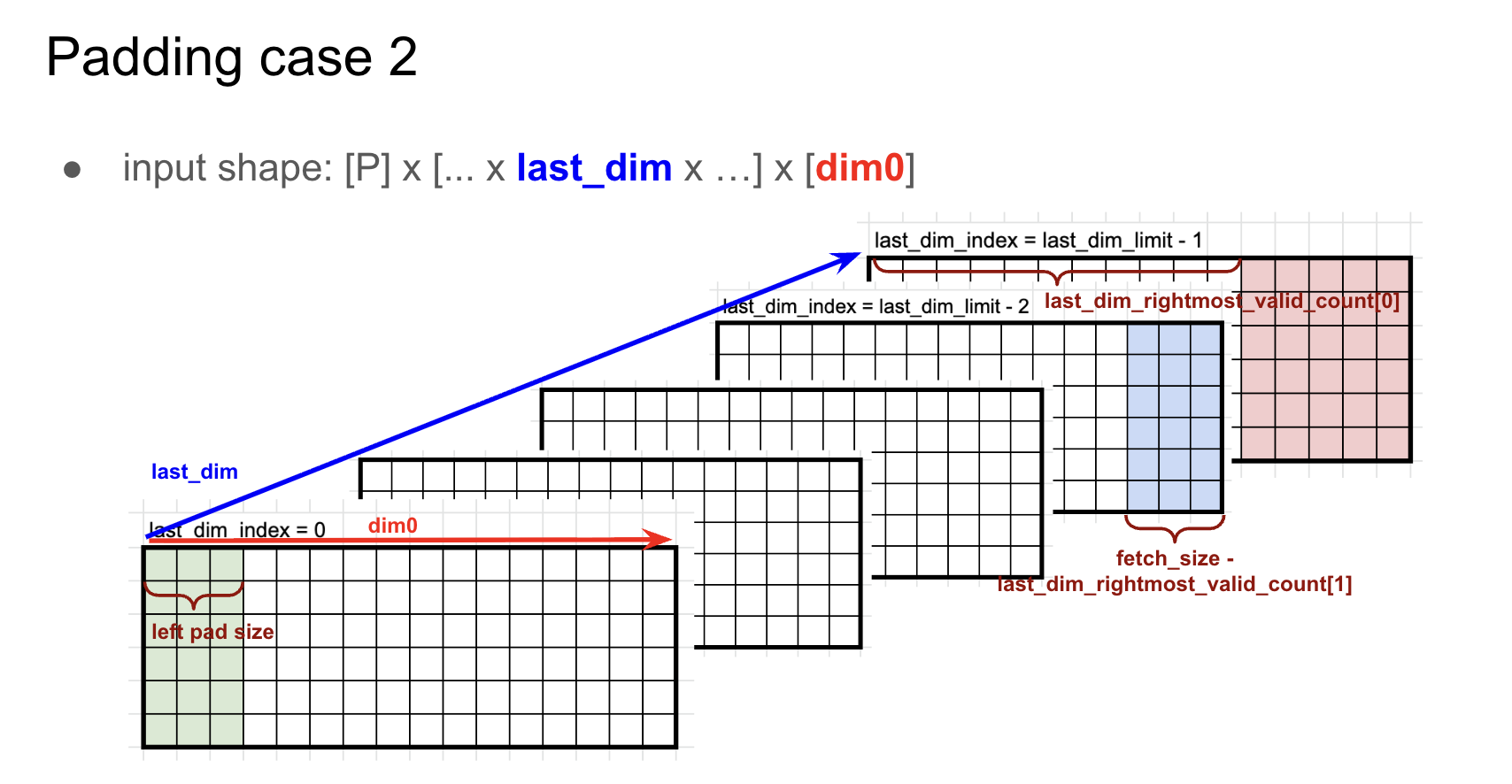

The diagram below shows the intent: the chunk axis B # 96 / 32 carries the pad, and the mask zeroes its last 4 slots.
From the input and output mappings the compiler emits these sequencer loops (innermost first):
[
B # 96 % 32 = 32 : 1, // loop 0: packet axis
B # 96 / 32 = 3 : 32, // loop 1: chunk axis (carries the pad)
A = 32 : 96, // loop 2: outer
] : 32 @ base_addr = 0
It then programs the hardware mask with these parameters:
last_axis= the chunk axisB # 96 / 32(recorded as an axis, not a raw loop index, since the sequencer optimizer may merge entries).valid_count_dim = Rightmost(only the rightmost cell oflast_axisis masked).rightmost_valid_count = [4, 0, 0, 0, 0, 0, 0, 0](4 slots zeroed at the tail of the rightmost iteration).
At run time the hardware streams every packet untouched until the chunk axis hits its last iteration, where it zeroes the trailing 4 slots of that final packet.
The output type therefore tightens from B # 96 to B #{0} 96.
Split right mask
This case keeps the same right pad as the previous case, but a non-padded axis splits the padded region across the stream.
#![feature(adt_const_params)]
extern crate furiosa_opt_std;
use furiosa_opt_std::prelude::*;
axes![A = 32, B = 92];
fn fetch_mask_split_right<'l, const T: Tu>(
input: BeginTensor<'l, T, i8, m![1], m![1], m![1], m![1], m![A, B # 96]>,
) -> FetchMaskTensor<'l, T, i8, m![1], m![1], m![1], m![B #{0} 96 / 32, A], m![B #{0} 96 % 32]> {
input
.fetch::<m![B # 96 / 32, A], m![B # 96 % 32]>()
// Time = m![B # 96 / 32, A]
// Packet = m![B # 96 % 32]
// OutTime = m![B #{0} 96 / 32, A]
// OutPacket = m![B #{0} 96 % 32] (innermost packet axis tightens)
.fetch_mask::<m![B #{0} 96 / 32, A], m![B #{0} 96 % 32]>()
}
let mut ctx = Context::acquire();
let x: BeginTensor<'_, _, i8, m![1], m![1], m![1], m![1], m![A, B # 96]> = BeginTensor::new(&mut ctx.main, Tensor::zero());
let _o = fetch_mask_split_right(x);
The diagram below shows the intent: A now sits between B # 96 / 32 and B # 96 % 32, so the pad lives on the innermost packet axis instead of an outer chunk axis.
The compiler emits these sequencer loops:
[
B # 96 % 32 = 32 : 1, // loop 0: packet axis (carries the pad)
A = 32 : 96, // loop 1: non-padded axis splits the chunks
B # 96 / 32 = 3 : 32, // loop 2: outer chunk axis
] : 32 @ base_addr = 0
It then programs the hardware mask with these parameters:
last_axis= the innermost packet axis (the only axis carrying the pad in this layout).valid_count_dim = Rightmost(a single cell at the tail of the outermost iteration covers the pad).rightmost_valid_count = [4, 0, 0, 0, 0, 0, 0, 0](4 slots zeroed per affected packet).
While the outermost B # 96 / 32 loop runs its final iteration, the hardware zeroes the last 4 elements of every packet it emits.
The input keeps B # 96 and the masked return type is the same B #{0} 96 as the previous case, with only the Time-axis order differing.
Variable per-chunk mask
This case lifts the per-cell cap (255 for 4-bit data, 31 for f32) by giving each chunk its own valid count.
The DM tensor’s B # 128 carries 31 trailing pad slots split across 8 chunks of 16, so the cap does not suffice on its own.
#![feature(adt_const_params)]
extern crate furiosa_opt_std;
use furiosa_opt_std::prelude::*;
axes![A = 32, B = 97];
fn fetch_mask_variable_per_chunk<'l, const T: Tu>(
input: BeginTensor<'l, T, f32, m![1], m![1], m![1], m![1], m![A, B # 128]>,
) -> FetchMaskTensor<'l, T, f32, m![1], m![1], m![1], m![A, B #{0} 128 / 16, 1], m![B #{0} 128 % 16]> {
input
.fetch::<m![A, B # 128 / 16, 1], m![B # 128 % 16]>()
// Time = m![A, B # 128 / 16, 1]
// Packet = m![B # 128 % 16]
// OutTime = m![A, B #{0} 128 / 16, 1]
// OutPacket = m![B #{0} 128 % 16]
.fetch_mask::<m![A, B #{0} 128 / 16, 1], m![B #{0} 128 % 16]>()
}
let mut ctx = Context::acquire();
let x: BeginTensor<'_, _, f32, m![1], m![1], m![1], m![1], m![A, B # 128]> = BeginTensor::new(&mut ctx.main, Tensor::zero());
let _o = fetch_mask_variable_per_chunk(x);
The diagram below shows the intent: 8 chunks each get their own valid count, so the per-chunk cap no longer constrains the pad.
The compiler emits these sequencer loops:
[
B # 128 % 16 = 16 : 1, // loop 0: packet axis
1 = 1 : 0, // loop 1: unit loop (placeholder)
B # 128 / 16 = 8 : 16, // loop 2: chunk axis (one count per iteration)
A = 32 : 128, // loop 3: outer
] : 16 @ base_addr = 0
It then programs the hardware mask with these parameters:
last_axis= theB # 128 / 16chunk axis.valid_count_dim = Iterator(2)(the count array indexes along the same loop, so entryicovers chunki; the only variant that consumes more than one array entry).rightmost_valid_count = [16, 16, 16, 16, 16, 16, 1, 0](counts sum to 97, the validBlength: chunks 0-5 fully live, chunk 6 keeps only its first element, chunk 7 is fully zeroed).
The hardware applies one cell’s count per chunk iteration, in lockstep with the loop.
The output type’s B #{0} 128 records the remaining 31 trailing slots as zero.
Left Padding
Left padding zeroes the first few elements when last_axis is the innermost axis.
The sequencer’s base_addr is shifted by -left_pad so reads start in pre-data memory, which the mask then overwrites.
This is the only place where masking depends on the sequencer configuration.
Contiguous left+right mask
This case combines one contiguous left pad with one contiguous right pad along the innermost axis.
Input (# 2 + B) # 96 has 2 arbitrary head slots and 4 arbitrary tail slots.
axes![A = 32, B = 90];
fn fetch_mask_contiguous_left_right<'l, const T: Tu>(
input: BeginTensor<'l, T, i8, m![1], m![1], m![1], m![1], m![A, (# 2 + B) # 96]>,
) -> FetchMaskTensor<'l, T, i8, m![1], m![1], m![1], m![A, (#{0} 2 + B) #{0} 96 / 32], m![(#{0} 2 + B) #{0} 96 % 32]> {
input
.fetch::<m![A, (# 2 + B) # 96 / 32], m![(# 2 + B) # 96 % 32]>()
// Time = m![A, (# 2 + B) # 96 / 32]
// Packet = m![(# 2 + B) # 96 % 32]
// OutTime = m![A, (#{0} 2 + B) #{0} 96 / 32]
// OutPacket = m![(#{0} 2 + B) #{0} 96 % 32]
.fetch_mask::<m![A, (#{0} 2 + B) #{0} 96 / 32], m![(#{0} 2 + B) #{0} 96 % 32]>()
}
The diagram below shows the intent.
The sequencer shape matches the contiguous-right case, but the base address shifts:
[
(# 2 + B) # 96 % 32 = 32 : 1, // loop 0: packet axis
(# 2 + B) # 96 / 32 = 3 : 32, // loop 1: chunk axis (carries the right pad)
A = 32 : 96, // loop 2: outer
] : 32 @ base_addr = -2
It then programs the hardware mask with these parameters:
last_axis= the chunk axis carrying the right pad (same as the contiguous-right case).valid_count_dim = Rightmost(one cell at the tail of the rightmost iteration covers the right pad).rightmost_valid_count = [4, 0, 0, 0, 0, 0, 0, 0](4 slots zeroed at the tail of the rightmost iteration).left_pad = 2(planned; zero the first 2 slots of every packet).
base_addr = -2 reads 2 bytes earlier so the head pad enters the stream, and left_pad = 2 overwrites those leading slots before they reach the consumer.
The return type tightens to (#{0} 2 + B) #{0} 96.
Split left+right mask
This case combines a left pad and a right pad whose regions are split across the stream by a non-padded axis.
axes![A = 32, B = 90];
fn fetch_mask_split_left_right<'l, const T: Tu>(
input: BeginTensor<'l, T, i8, m![1], m![1], m![1], m![1], m![A, (# 2 + B) # 96]>,
) -> FetchMaskTensor<'l, T, i8, m![1], m![1], m![1], m![(#{0} 2 + B) #{0} 96 / 32, A], m![(#{0} 2 + B) #{0} 96 % 32]> {
input
.fetch::<m![(# 2 + B) # 96 / 32, A], m![(# 2 + B) # 96 % 32]>()
// Time = m![(# 2 + B) # 96 / 32, A]
// Packet = m![(# 2 + B) # 96 % 32]
// OutTime = m![(#{0} 2 + B) #{0} 96 / 32, A]
// OutPacket = m![(#{0} 2 + B) #{0} 96 % 32]
.fetch_mask::<m![(#{0} 2 + B) #{0} 96 / 32, A], m![(#{0} 2 + B) #{0} 96 % 32]>()
}
The diagram below shows the intent.
The sequencer shape matches the split-right case, but the base address shifts:
[
(# 2 + B) # 96 % 32 = 32 : 1, // loop 0: packet axis (carries both pads)
A = 32 : 96, // loop 1: non-padded axis splits the chunks
(# 2 + B) # 96 / 32 = 3 : 32, // loop 2: outer chunk axis
] : 32 @ base_addr = -2
It then programs the hardware mask with these parameters:
last_axis= the innermost packet axis, carrying both head and tail pads.valid_count_dim = Rightmost(one cell at the tail of the outermost iteration covers the right pad).rightmost_valid_count = [4, 0, 0, 0, 0, 0, 0, 0](4 slots zeroed at the tail of every affected packet).left_pad = 2(planned; zero the first 2 slots of every packet).
The masked return type is the same (#{0} 2 + B) #{0} 96 as the previous case, with only the Time-axis order differing.
Table Lookup
Table lookup provides hardware-accelerated lookup tables during the fetch stage. Each value is treated as an index into a pre-configured table, and the corresponding table entry is output instead. This is useful for operations that cannot be efficiently implemented with standard arithmetic, such as non-linear activation functions like Sigmoid and GeLU, or quantization schemes that use custom encoding tables. This enables:
- Non-linear activations: Implements Sigmoid, GeLU, and other functions through pre-computed lookup tables.
- Custom type casting: Translates specialized encodings like
MXFP4to standard formats using conversion tables.
Sigmoid and GeLU can also be expressed directly in the Vector Engine, so table lookup is one option among several for these activations rather than the only path.
impl<
'l,
const T: Tu,
P: CanApplyFetchTableLookup,
D: Scalar,
Chip: M,
Cluster: M,
Slice: M,
Time: M,
Packet: M,
B: Backend,
> TuTensor<'l, T, P, D, Chip, Cluster, Slice, Time, Packet, B>
{
/// Runs the Fetch Adapter's table-lookup stage.
#[primitive(TuTensor::fetch_table_lookup)]
#[allow(unreachable_code)]
pub fn fetch_table_lookup<OutD: Scalar>(
self,
) -> FetchTableLookupTensor<'l, T, OutD, Chip, Cluster, Slice, Time, Packet, B> {
verify_fetch_table_lookup::<D, OutD, Time, Packet>();
FetchTableLookupTensor::new(self.ctx, todo!())
}
}
#![feature(adt_const_params)]
extern crate furiosa_opt_std;
use furiosa_opt_std::prelude::*;
axes![A = 8];
/// Fetches with table lookup: each input value indexes into a pre-configured table.
/// Input [0, 1, 2, 3, 4, 5, 6, 7] with table[x] = 2*x
/// Output [0, 2, 4, 6, 8, 10, 12, 14]
fn fetch_with_table<'l, const T: Tu>(
input: BeginTensor<'l, T, i8, m![1], m![1], m![1], m![1], m![A]>,
table: &LookupTable<i8, i8>,
) -> FetchTableLookupTensor<'l, T, i8, m![1], m![1], m![1], m![1], m![A]> {
input.fetch::<m![1], m![A]>().fetch_table_lookup::<i8>()
}
Type Casting
fetch_cast::<OutD>() converts the element type from D to OutD, preserving the Time and Packet mapping.
Type casting adds 1 to 2 cycles of latency.
fetch_cast performs only the type conversion; the integer widenings that hold a zero-point offset (i4 to i5, i8 to i9) are a separate stage, Zero-Point Subtraction, so fetch_cast never produces an i5/i9.
impl<
'l,
const T: Tu,
P: CanApplyFetchCast,
D: MaterializableScalar,
Chip: M,
Cluster: M,
Slice: M,
Time: M,
Packet: M,
B: Backend,
> TuTensor<'l, T, P, D, Chip, Cluster, Slice, Time, Packet, B>
{
/// Runs the Fetch Adapter's type-casting stage.
///
/// Converts the stream's element type from `D` to `OutD`. The mapping
/// shape is preserved.
#[primitive(TuTensor::fetch_cast)]
pub fn fetch_cast<OutD: Scalar>(self) -> FetchCastTensor<'l, T, OutD, Chip, Cluster, Slice, Time, Packet, B>
where
D: FetchCast<OutD>,
{
FetchCastTensor::new(self.ctx, self.inner.map(|v| v.cast()))
}
}
RNGD supports the following fetch_cast conversions (the i4 to i5 and i8 to i9 widenings are Zero-Point Subtraction, not type casts):
| Input | Output |
|---|---|
i4 | i32 |
i8 | i32 |
i16 | i32 |
f8e4m3 | f32 |
f8e5m2 | f32 |
bf16 | f32 |
f16 | f32 |
f32 | bf16 |
The example below fetches an 8-element i8 stream and casts it to i32.
The Time and Packet mapping is unchanged across the call.
#![feature(adt_const_params)]
extern crate furiosa_opt_std;
use furiosa_opt_std::prelude::*;
axes![A = 8];
/// Fetches with type casting: converts i8 storage to i32 for computation.
/// Input: i8 [0, 1, 2, 3, 4, 5, 6, 7]
/// Output: i32 [0, 1, 2, 3, 4, 5, 6, 7]
fn fetch_with_type_cast<'l, const T: Tu>(
input: BeginTensor<'l, T, i8, m![1], m![1], m![1], m![1], m![A]>,
) -> FetchCastTensor<'l, T, i32, m![1], m![1], m![1], m![1], m![A]> {
input.fetch::<m![1], m![A]>().fetch_cast::<i32>()
}
let mut ctx = Context::acquire();
let x: BeginTensor<'_, _, i8, m![1], m![1], m![1], m![1], m![A]> = BeginTensor::new(&mut ctx.main, Tensor::zero());
let _o = fetch_with_type_cast(x);
Type casting adds an additional limit on read_size.
The cast output per fetch must fit in a single 32-byte flit (see Collect Engine).
- Valid:
i4->i32,read_size = 8 (4 bytes): produces 8 × 4 = 32 Bi8->i32,read_size = 8 (8 bytes): produces 8 × 4 = 32 B
- Invalid:
i4->i32,read_size = 16 (8 bytes): produces 16 × 4 = 64 Bi8->i32,read_size = 16 (16 bytes): produces 16 × 4 = 64 B
Zero-Point Subtraction
fetch_zero_point_sub::<OutD>(zero_point) subtracts the quantization zero_point from each element and widens the stream to the Contraction Engine’s staging type: i4 to i5, i8 to i9.
It is the only stage that produces an i5/i9.
impl<
'l,
const T: Tu,
P: CanApplyFetchZeroPointSub,
D: MaterializableScalar,
Chip: M,
Cluster: M,
Slice: M,
Time: M,
Packet: M,
B: Backend,
> TuTensor<'l, T, P, D, Chip, Cluster, Slice, Time, Packet, B>
{
/// Runs the Fetch Adapter's zero-point-subtraction stage.
///
/// Subtracts `zero_point` and widens the stream from `D` to its contraction-engine staging
/// type `OutD` (`i4 -> i5`, `i8 -> i9`), the only way to produce an i5/i9
/// stream. The result may only feed `contract_outer`; it is not
/// [`MaterializableScalar`], so committing or re-routing it is a compile
/// error. The mapping shape is preserved.
///
/// Panics if `zero_point` is outside the source type's range
/// ([`FetchZeroPointSub::ZERO_POINT_RANGE`]); a zero point in range keeps
/// every widened residual within `OutD`, so this one check (independent of
/// the stream data) is enough.
#[primitive(TuTensor::fetch_zero_point_sub)]
pub fn fetch_zero_point_sub<OutD: Scalar>(
self,
zero_point: i32,
) -> FetchZeroPointSubTensor<'l, T, OutD, Chip, Cluster, Slice, Time, Packet, B>
where
D: FetchZeroPointSub<OutD>,
{
let zero_point_range = <D as FetchZeroPointSub<OutD>>::ZERO_POINT_RANGE;
assert!(
zero_point_range.contains(&zero_point),
"zero_point {zero_point} is outside the source type's quantized range {zero_point_range:?}",
);
FetchZeroPointSubTensor::new(self.ctx, self.inner.map(|v| v.zero_point_sub(zero_point)))
}
}
Why the extra bit
Subtracting the zero point turns an unsigned-around-zero_point quantized value into a signed residual whose range no longer fits the input width.
For a symmetric-signed input the residual is a difference of two same-width values:
i4residual:[-8, 7] - [-8, 7] = [-15, 15], which needsi5’s[-16, 15].i8residual:[-128, 127] - [-128, 127] = [-255, 255], which needsi9’s[-256, 255].
The subtraction therefore produces one more bit than it consumes. The conversion checks this at runtime: a residual outside the i5/i9 range (an out-of-range zero_point or input) is rejected rather than silently wrapped.
Contraction Engine specification
i5 and i9 exist only as Contraction Engine operands. The engine multiplies operand pairs drawn from the same integer precision family and accumulates in i32:
| Stream (activation) | Weight (TRF) | Accumulator |
|---|---|---|
i4 or i5 | i4 or i5 | i32 |
i8 or i9 | i8 or i9 | i32 |
Either operand may be the raw form (i4/i8) or its zero-point-subtracted staging (i5/i9); the two operands need not match within a family, but they may not cross families (no i4 against i8) or kinds (no integer against float).
Floating-point contraction pairs (bf16, f8e4m3, f8e5m2) must match exactly and are never zero-point-subtracted.
Staging is contraction-only
An i5/i9 stream may flow through the Switch Engine and Collect Engine, but from there its only legal consumer is contract_outer.
It cannot be committed to memory, stored to a register file (to_trf/to_vrf), transposed, or fed to any other engine.
This restriction is enforced at compile time, not by a runtime check: passing an i5/i9 stream to any consumer other than contract_outer is a compile error.
